Antenna Pointing Devices and Brackets

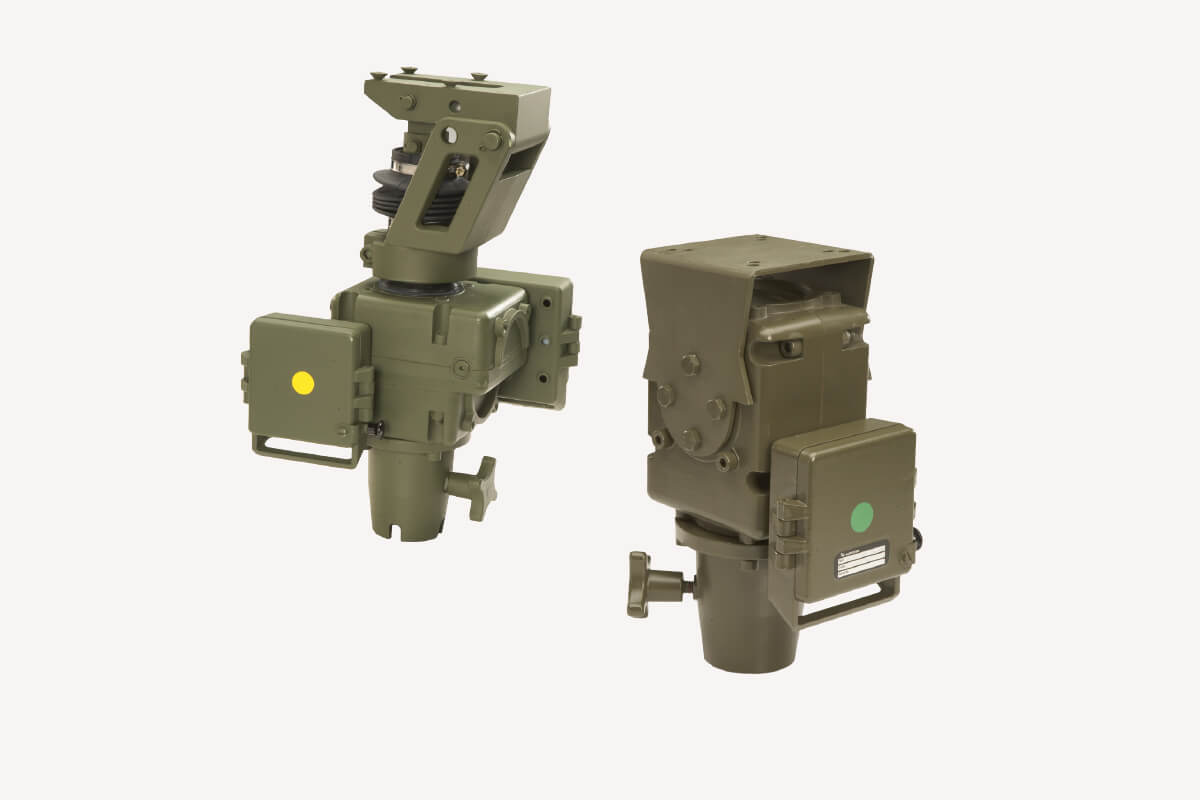

Antenna pointing devices and brackets for rapid top load repositioning

Antenna pointing devices and brackets are available for different pointing functions. Made by Mastsystem, these antenna pointing devices and accessories are available with all colours and special paints that our masts systems. Designed and manufactured by us in Finland, these devices work optimally when paired with other Mastsystem products.

We offer various types of in-house made antenna pointing solutions:

  • Rotators
  • Double rotators
  • Tilters
  • Rotator-tilters

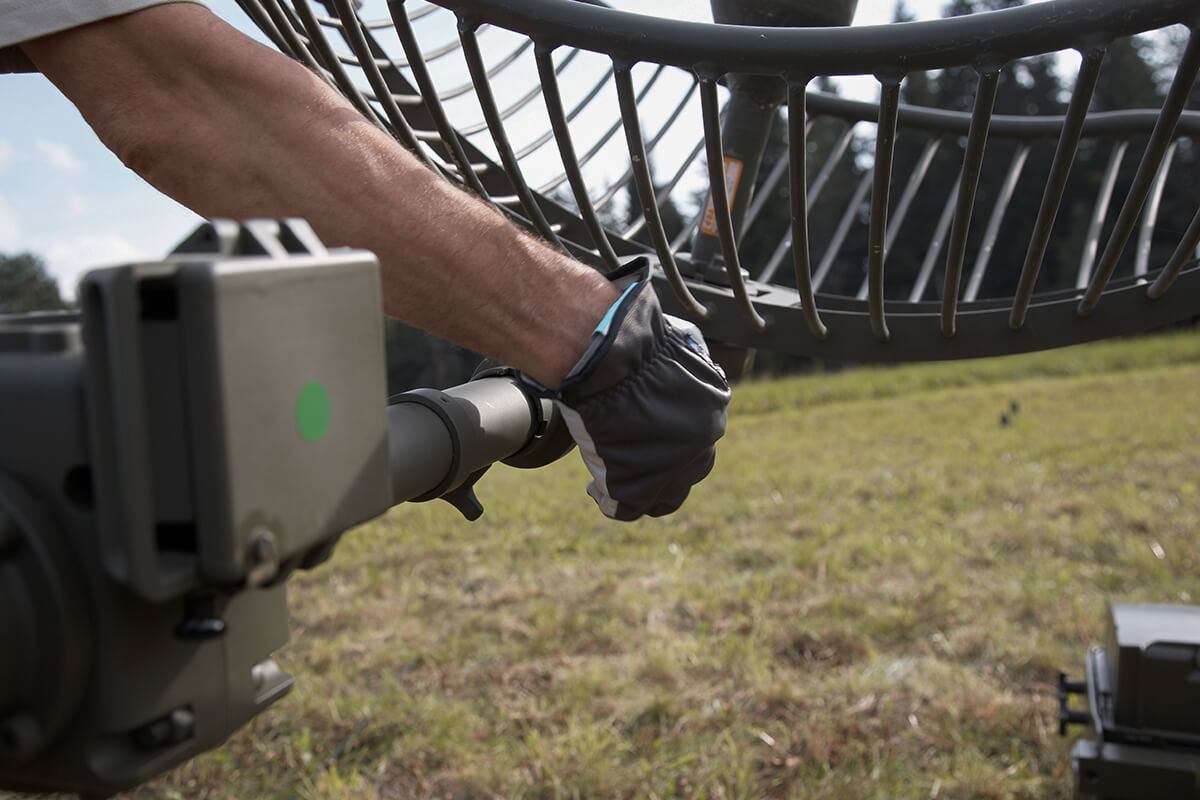

Made to stand time and extreme conditions, our manual antenna pointing devices are operated from the ground by manoeuvring ropes. Electric remote control units (24 VDC) are available for single rotators. For vehicle mounted masts, such as EXB and SkyHigh systems, we offer fully electric, computer controlled top load repositioning devices, supplied by trusted partner company.

signal jamming solution in vehicle mounted mast system

TR-masts can also be mounted on to a vehicle

Mounting: antennas and other top load types can be mounted either directly on the antenna pointing device, or with antenna specific adapters.  We also design and manufacture customer specific antenna adapters.

READ MORE ABOUT ANTENNA POSITIONING BY DOWNLOADING OUR PDF BELOW.

Marketing permission(Required)
This field is for validation purposes and should be left unchanged.



Mastsystem Int’l Oy’s quality – and environmental management system fulfils the requirements of ISO 9001, ISO 14001 and AQAP 2110 standards. Masts and accessories have been proven to meet the environmental requirements in accordance with the MIL-STD 810 and DEF STAN 00-35.

In addition to wide range of pointing devices, Mastsystem manufactures different types of antenna mast booms, adapters, and extension tubes.

Mastsystem top load mounting hardware

One example of antenna boom, adapter and extension tube



  • Top load adapters and repositioning devices for antenna mast
  • top load repositioning accessories for mast system
  • antenna positioner
  • Top load rotator titler device for antenna mast
  • Antenna radar communication system in the top of composite mast
  • Antenna booms and extension tubes
›‹

Antenna pointing devices and brackets

Imperial units

SINGLE ROTATOR DOUBLE ROTATOR TILTER ROTATOR – TILTER
MAX PAYLOAD (KG/LB) 50/110* 50/110* 50/110* 50/110*
LOAD CAPACITY (NM): PAN AXIS RANGE 150°* 150°* – 150°*
LOAD CAPACITY (NM): TILT AXIS RANGE – – 150°* 250°*
PRODUCT WEIGHT (KG/LB) 5,5/12,2 8,5/18,8 5,5/12,2 9,8/21,9
NO. OF ANTENNAS ROTATES ONE ANTENNA 360° ROTATES TWO SEPARATE ANTENNAS 360° INDEPENDENT OF EACH OTHER TILTS ONE ANTENNA ± 15-30° FROM HORIZONTAL PLANE ROTATES ONE ANTENNA 360° AND TILTS ANOTHER ANTENNA ± 15-30° FROM HORIZONTAL PLANE

* Final performance depends on antenna set up and balancing of the top load.

Additional information

All antenna pointing devices are designed to meet the most demanding harsh environment of communication and manufactured to resist external forces and ensure quick and safe operation. A wide range of pointing device accessories and tailor-made fastenings are available to meet the most demanding customer needs.

Antenna pointing devices are operated manually from the ground by manoeuvring ropes. Antennas can be mounted directly on the antenna pointing device or on antenna specific adapters.

Antenna adapters for different antenna types are available for various applications. We also design and manufacture customer specific antenna adapters.

TAILORED TO MEET YOUR SPECIFICATION

Find the right top load positioner to fill your requirements.

Long experience in mast configuration helps us to find and configure the optimal system to fulfil your requirements. Start the journey and we will contact you at soonest.

Contact us
